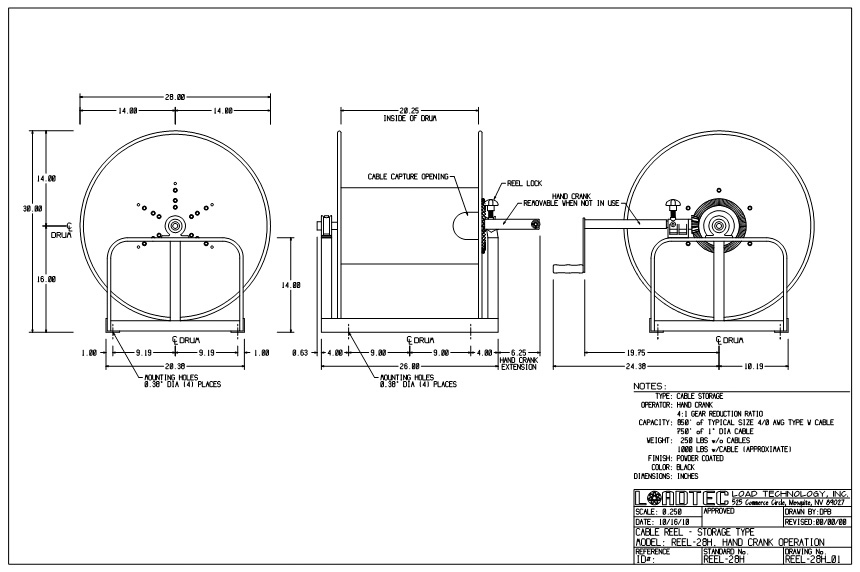

SPECIFICATIONS: APPLICATION: AFTERMARKET APPLICATION OR LOADTEC® TRAILER CHASSIS O.E.M REPLACEMENT INSTALLATION DIMENSIONS: 26"L x 28"D x 30"H (does not include hand-lever dimensions) WEIGHT: 130 lbs. (approx. without cable) HAND CRANK: Reversible Position Configuration COLOR: Black FINISH: Powder-Coated OPERATOR: Hand Crank Lever PURPOSE: Cable Storage CAPACITY: 850' of Typical Size 4/0 TYPE W Cable (approx 0.79" O.D. 600V cable)** CAPACITY: 750' of 1.00" Outside Diameter Cable** |
FOOTNOTES: † OPTIONAL ITEM(S) The "†" symbol is used throughout the entire website to note and identify any optional item, feature, or equipment not included in the standard base pricing of the equipment. These optional items are normally available for additional costs. **CABLE CAPACITY Cable capacities listed are deemed accurate and have been demonstrated in the field and at LOADTEC's factory. The reel's cable capacity will decrease as the cable thickness [outside diameter (O.D.)] increases. The flexibility characteristics of the cable can also impact the cable capacity. The cable must also be neatly and tightly placed on the reels to ensure maximum cable capacity rating. Using extremely bulky or non-standard cam plugs can also limit the cable capacity. Cable is NOT included. OPERATION These cable reels are intended for storage purposes only. NEVER ENERGIZE ANY CABLE STORED ON REELS. CABLE MUST BE REMOVED PRIOR TO USE. MAINTENANCE The cable reels should be checked for tightness/proper torque periodically on a routine basis. Over time; as with any assembly that contains moving parts, hardware can loosen. In extreme cases, lack of tightening can cause damage to the reel. Periodic maintenance of the LOADTEC cable reels and lubrication of the chains will ensure they last the life of the load bank. DISCLAIMER: All information contained within this website is provided as a courtesy to our customers and is subject to change without notice. LOADTEC® strives to post the most accurate, updated, and current information regarding our products and services. The information on this website should be deemed reliable; however not guaranteed. LOADTEC® reserves the right to correct any errors or ommissions regarding this site and/or any proposal offerings. Pictures displayed on the website are for illustrative purposes only and may depict or show (but not limited to) optional: items, equipment, colors, features, configurations, & arrangements that may or may not be available for an additional cost. Weights and dimensions shown are a close estimate and are deemed reliable, but may vary due to the addition of optional equipment and or minor production changes throughout the life of the particular load bank model. The pictures and information were accurate at time of website publishing to the world wide web. |
